Low Charge Hand Clean Roller

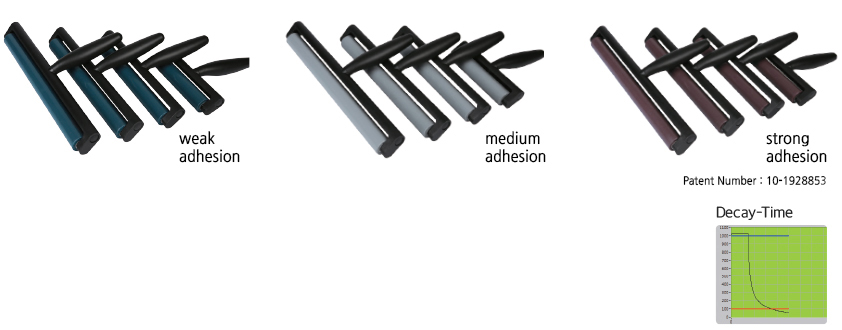

Silicone Polymer Roller is a Low Charge Hand Roller that has low charge and low / medium / high adhesion strength. Static electricity generated when cleaning the product is quickly removed through the Low Charge Roll and frame and ground wire, minimizing secondary contamination due to static electricity.

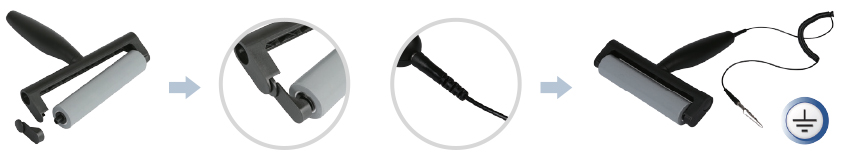

Assembly drawingAssembly view

Product FeaturesFeatures

•Low Charge, Adhesion Control to Silicone Polymer
•Roller No organic contaminants on the surface
•Low Charge Roller (Surface resistance 107-9 [Ω])
•Low Charge Frame (Surface resistance 104~6 [Ω])
•Static electricity generated in Roller can be quickly removed through ground line

Product ManagementMaintenance

•Particles deposited on the roller are cleaned using a dedicated HCR Pad.
•After wetting the clean wiper with IPA (IsoPropyl Alcohol, IPA), clean the roller surface and dry the remaining IPA on the roller for 2 minutes or more
•Do not leave it on the HCR Pad for a long time.
•Do not expose to organic solvents, acids or bases for long periods of time.

Product SpecificationsSpecification

Model Size(mm) Adhesion
[gf] Note 1)		 Hardness
[shore ‘A’]		 Color Decay Time
[Sec]		 Resistance
[Ω]
LCHRX-150 150 x ø32 1 : 100 strengths
2 : 85 middle point
3: 70 weakness		 20
30
50		 Red,
Gray,
Blue		 1 < Surface resistance
107-9 [Ω]
LCHRX-250 250 x ø32
LCHRX-300 300 x ø32
LCHRX-350 350 x ø32

※ Note 1) Adhesion measurement: Reference weight 100 [g]
