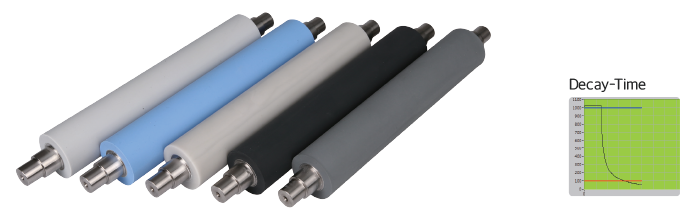

Low Charge Clean Roller

It is a low charge clean roller which is manufactured by Polymer and is manufactured by low charge of electrostatic voltage and by weak / medium / strong adhesive force. In particular, minimizes the friction and peeling static electricity generated between the product and the clean roller, and removes the environmental particles in the product by using the adhesive force. The particles on the roller are removed by Adhesive Roll.

Product FeaturesFeatures

•Low Charge, Adhesion Control to Silicone Polymer
•Roller No organic pollution on surface
•Low Charge Cleaner (Surface resistance 109-11 [Ω])
•Stable heat resistance and weatherability

Product ManagementMaintenance

•Product Management Particles adhered to the Roller are cleaned using Adhesive Roll
•After wetting the clean wiper with IPA (IsoPropyl Alcohol, IPA), clean the roller surface and dry the remaining IPA on the roller for 2 minutes or more
•Do not leave on adhesive roll for a long time
•Do not expose to organic solvents, acids or bases for long periods of time.

Product SpecificationsSpecification

Model Size(mm) Adhesion
[gf] Note 1)		 Hardness
[shore ‘A’]		 Color Decay Time
[Sec]		 Resistance
[Ω]
LCCRX-L Outer diameter : ø20~ ø200
Length : 100～ 2500mm		 1 : 110
2 : 90
3 : 80
4 : 75		 35
40
50
60		 White,
Gray,
White Gray,
Etc.		 1 < basic : 1011
[Ω]Below

※ Note 1) Adhesive force measurement: Reference weight 50 [g]
